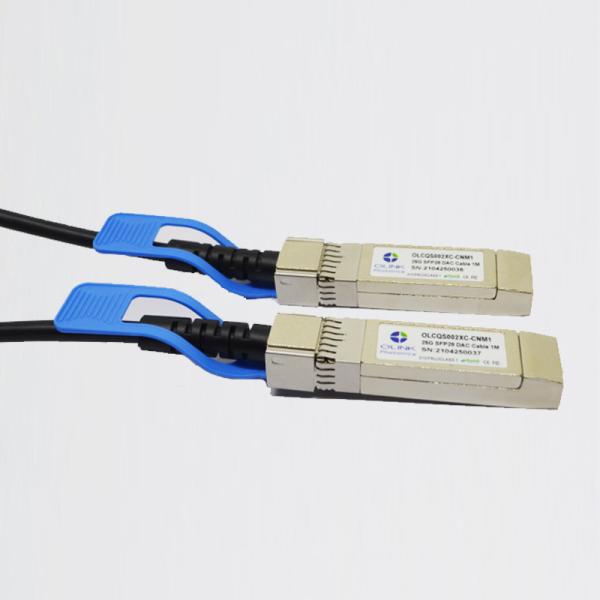

Ubiquiti UACC-DAC-SFP28 Compatible 25G SFP28 Passive Direct Attach
Copper Cable
This 25G SFP28 DAC cable is a passive direct attach copper cable
with 1 meter length. It is intended for short-distance connections
and offers a 25-Gigabit link between SFP28 ports of switches inside
racks and adjacent racks. Each compatible 25G DAC has been
engineered and designed to work flawlessly in the 25G SFP28 port of
Ubiquiti ethernet switches, servers, and ethernet Network Adapters.
• Compliant with SFF-8402 and SFF-8432
• Compatible with SFP28 MSA
• Lowest total system EMI solution
• Low insertion loss and low crosstalk
• Single 3.3V power supply
• RoHS Compliant and Lead-Free
Optical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Operating Wavelength | λ | nm | ||||
| Output Optical Eye | Compliant with IEEE 0802.3ae | |||||
| Receiver | ||||||
| Operating Wavelength | λ | nm | ||||
| Copper Cable input electrical characteristics | ||||||
| Differential Data Input Voltage | VIH-VIL | 200 | 800 | mVpp | 1 | |
| Differential Input Impedance | RIN | 100 | Ω | |||
| TX-Disable Input Voltage-Low | VIL | 0 | 0.8 | V | 2 | |
| TX-Disable Input Voltage-High | VIH | 2.0 | VCC | V | 2 | |
| TX-Fault Output Voltage-Low | VOL | 0 | 0.8 | V | 3 | |
| TX-Fault Output Voltage-High | VOH | 2.0 | VCC | V | 3 | |
| Copper Cable output electrical characteristics | ||||||
| Differential Data Output Voltage | VOH- VOL | 300 | 800 | mV | 1 | |
Differential Output | ROUT | 100 | Ω | |||
LOS-Asserted Output | VOL | 0 | 0.8 | V | 3 | |
LOS-Deasserted Output | VOH | 2.0 | VCC | V | 3 | |
Notes:
1. Average power figures are informative only, per IEEE 802.3ae.
2. Measured at the BER less than 5E-5, back to back. The measure
pattern is PRBS 231-1 with worst ER=4.5@ 25.781Gb/s.
3. Internal AC coupled
Ordering Information
| Part No. | Specifications | Application | ||||||||
| Package | Data rate | Laser | Optical Power Detector | Sensitivity | (OMA) | Top | Reach(Cable) | Other | ||
| OLSP02XC-CDM10 | SFP28 | Up to 25.781 Gb/s | / | / | / | / | 0~70 oC | 1~100m | DDM | Ethernet, Fiber Channel,InfiniBand, Other Protocols and ProprietaryData rates as well |
Application
25G Ethernet
Data center cabling infrastructure
