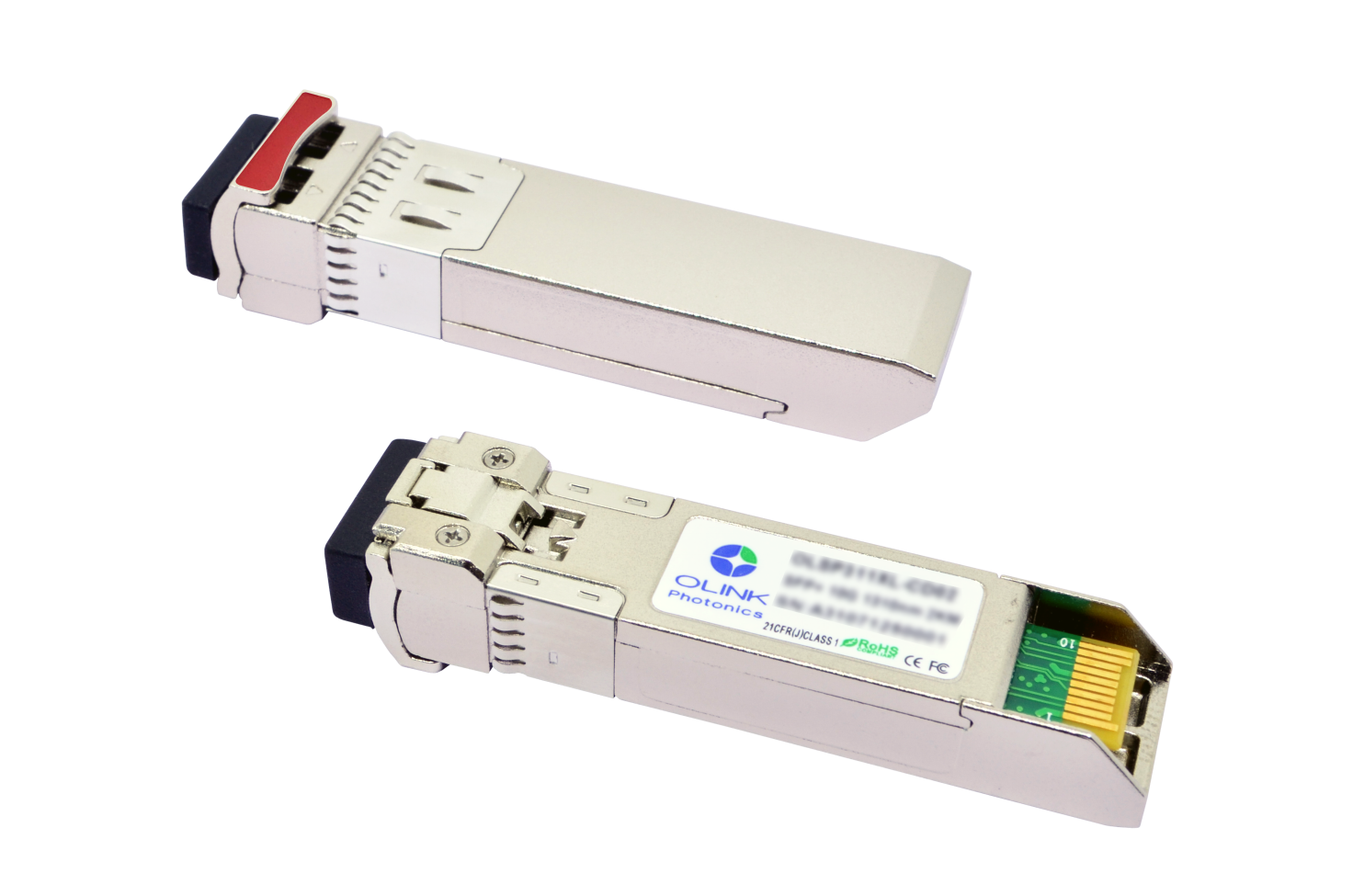

MikroTik Compatible 10G SFP+ Fiber Transceiver CWDM 1270nm 10km

Product Features

● Supports 9.95 to 11.5Gb/s bit rates

● Duplex LC connector

●Hot pluggable SFP+ footprint

● Uncooled 1270nm~1610nm DFB transmitter, PIN photo-detector

● Applicable for 10km SMF connection

● Low power consumption, < 1W

● Digital Diagnostic Monitor Interface

● Optical interface compliant to IEEE 802.3ae 10GBASE-LR

● Electrical interface compliant to SFF-8431

● Operating case temperature:

Commerical:0 to 70 °C Industrial:-40 to 85 °C

Applications

● 10GBASE-LR/LW at 10.3125Gbps

● 10G Ethernet

● Other optical links

Product Descriptions

Olinkcom’s OLSCxx1XL-C(I)D10 CWDM DFB 10Gbps SFP+ transceiver is designed to transmit and receive optical data over single mode optical fiber for link length 10km. This transceiver consists of two sections: The transmitter section incorporates a CWDM DFB laser. And the receiver section consists of a PIN photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.

Absolute Maximum Ratings

Note: Stress in excess of the maximum absolute ratings can cause permanent damage to the transceiver.

General Operating Characteristics

Electrical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)

Notes:

1. Connected directly to TX data input pins. AC coupling from pins into laser driver IC.

2. Into 100Ω differential termination.

3. 20 – 80%. Measured with Module Compliance Test Board and OMA test pattern. Use of four 1’s and four 0’s sequence in the PRBS 9 is an acceptable alternative.

4. LOS is an open collector output. Should be pulled up with 4.7kΩ – 10kΩ on the host board. Normal operation is logic 0; loss of signal is logic 1.

Optical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)

Notes:

1.The wavelength λ =1270nm~1610nm, Total 18 wavelengths,20nm spacing

2. Measured at 10.3125b/s with PRBS 2^{31 – 1} NRZ test pattern.

3.Under the ER worst =5, measured at 10.3125 Gb/s with PRBS 2^{31 - 1} NRZ test pattern for BER < 1x10^-12

Digital Diagnostic Specifications

The OLSCxx1XL-CD10 transceivers can be used in host systems that require either internally or externally calibrated digital diagnostics.

Notes:

1.When Operating temp.=0~70 ºC,the range will be min=-5,Max=+75

2. Internally measured

3. The accuracy of the Tx bias current is 10% of the actual current from the laser driver to the laser
