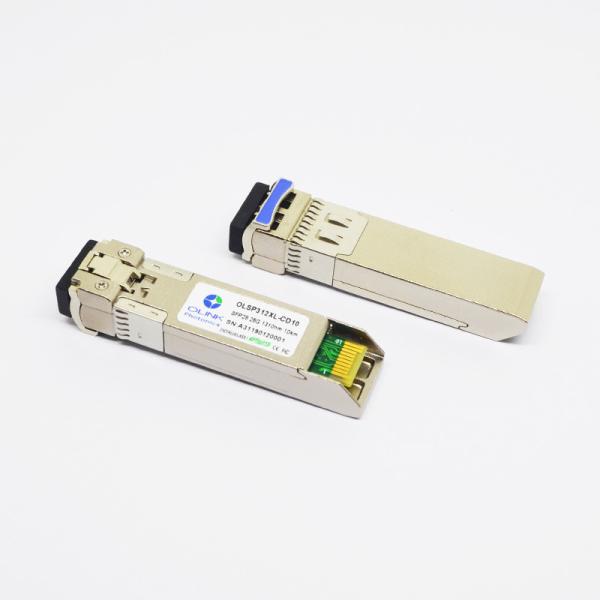

    Customized 25G SFP28 LR Transceiver 1310nm 10km DOM LC Single Mode Fiber

    Customized 25G SFP28 LR Transceiver 1310nm 10km DOM LC Single Mode Fiber


    Customized 25G LR SFP28 1310nm 10km DOM LC SMF Optical Transceiver Module


    Product Descriptions

    25G-LR SFP28 1310nm transceiver modile is designed for use in 25Gb/s data rateover single-mode fiber for transmit 10km.

    The products are designed for providing customers with customized 25Gb/s single line optical link of the best solution.


    Product Characteristics (TOP(C) = 0 to 70 , VCC = 3.13 to 3.47 V)

    ParameterSymbolMin.TypMax.UnitNote
    Transmitter
    Operating Wavelengthλ129013101330nm
    Ave. output power (Enabled)PAVE-52dBm1
    Side-Mode Suppression RatioSMSR30dB
    Extinction RatioER3.5dB
    RMS spectral width(-20dB)Δλ1nm
    Dispersion penaltyTDP2.7dB
    Relative Intensity NoiseRIN-130dB/Hz
    Receiver
    Operating Wavelength12601610nm
    Receiver Sensitivity(OMA)PSen-12dBm2
    Average Receiver PowerPimax-13.32dBm
    LOS AssertPa-30dBm
    LOS De-assertPd-12dBm
    LOS HysteresisPd-Pa0.55dB

    Notes:

    1. Average power figures are informative only, per IEEE 802.3cc.

    2. Measured at the BER less than 5E-5, back to back. The measure pattern is PRBS 231-1 with worst ER=4.5@ 25.78Gb/s.


    Product Ordering Information

    Part NumberDescription
    OLSP312XL-CD10SFP+, up to 25.78Gb/s, 1310nm, 10km, 0~70℃, with Digital Diagnostic Monitor

    Product Absolute Maximum Ratings

    ParameterSymbolMin.Max.UnitNote
    Supply VoltageVcc-0.54.0V
    Storage TemperatureTS-4085°C
    Relative HumidityRH085%

    Note: Stress in excess of the maximum absolute ratings can cause permanent damage to the transceiver.


    General Operating Characteristics

    ParameterSymbolMin.TypMax.UnitNote
    Data Rate25.78Gb/s
    Supply VoltageVcc3.133.33.47V
    Supply CurrentIcc450mA
    Operating Case Temp.Tc070°C

    Applications: 25.78 Gb/s single lane and other optical link
